Current location：

Home >Product>CNC Hydraulic Press>Heating Hydraulic Press>Details

25T Full Automatic Plate Vulcanizing Hydraulic Press Machine

Product model：Yz33

Product number：11

View video Back

Feature：

Movable Table, Displacement Sensor, Knocking Device, Mould Exchanging Trolley, Cooling Device, Cushion Device, Photo-electric Safety Device System Oil Heating Device, Industrial Touch Screen, Automati

Details

PLATE VULCANIZING HYDRAULIC PRESS

Yz33 Series

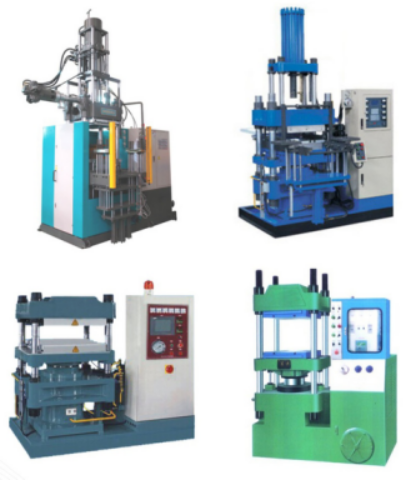

MACHINE APPEARANCE

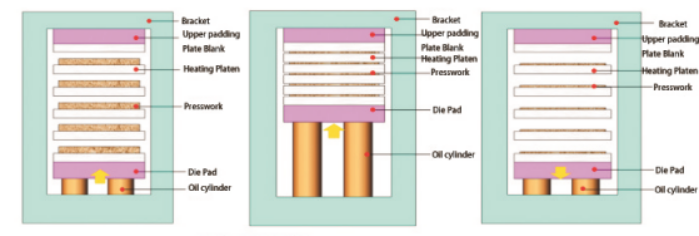

PRESSING PROCESS DIAGRAM

DATA SHEET

Model		unit	Yz33-25T	Yz33-50T	Yz33-63T	Yz33-100T	Yz33-160T	Yz33-250T
Clamping Force		KN	250	500	630	1000	1600	2500
Working layer		Qty.	2~4	2~4	2~4	2~4	2~4	2~4
Piston stroke		mm	180	250	250	250/250	250/250	500
Heating Platen daylight		mm	90	125	125	125	125	125
Heating Platen Size	Left-right	mm	350	400	500	600	750	900
Heating Platen Size	Front-back	mm	350	400	500	600	850	900
Heating plate power		KW	1.5	2.2	3	7.5	11	15
Motor power		KW	7.2	9	10.8	33.75	45	45

OPTIONAL DIAGRAM
