    Mrel Elbow Pipe Extrusion Hydraulic Press
    Product model：Yz61
    Product number：38
    View videoBack
    Feature：
    slide proportional speed system, blanking buffer device, hydraulic plate proportional system, photoelectric protective device, cooling device, die protect device, displacement transducer, industrial t
    Details

	  BEND AND PIPES    HYDRAULIC PRESS




	                                                                                              Yz61 Series

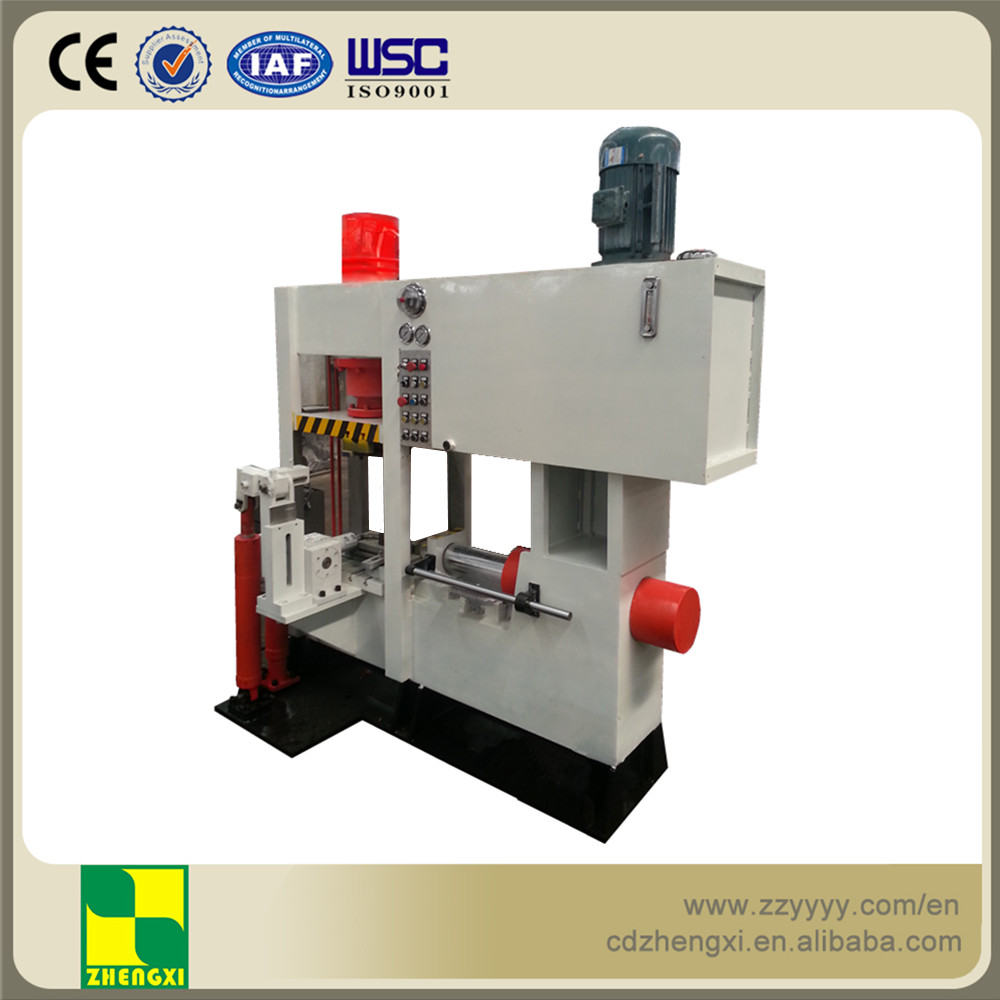

	MACHINE APPEARANCE














	DATA SHEET















					 Model


					 Yz61-120T


					 Yz61-400T


					 Yz61-800T


					 Yz61-1000T






					 Clamping Force


					 1200KN


					 4000KN


					 8000KN


					 10000KN






					 Side Force


					 1000KN


					 2000KN


					 3500KN


					 5000KN






					 Lidquid Force


					 28Mpa


					 28Mpa


					 28Mpa


					 28Mpa






					 Bends


					 1-4 inches


					 4-8 inches


					 6-12 inches


					 12-16 inches


















		CHARACTERISTICS




		This series press use for the production of bend and connectors, the press is design for the market needs small radius bend, can produce radius of 1-1.5D bend. Bend press technology is introduction from Germany, can produce products reach GB standard, has production capacity from 100T to 4000T.
















		OPTIONAL DIAGRAM
