Current location：

Home >Product>CNC Hydraulic Press>Head Hydraulic Press>Details

Four Column Head Plate Forming Hydraulic Press Machine

Product model：YzF27

Product number：39

View video Back

Feature：

oil cooling device, touch scren, mold protection device

Details

HEMISPHERICAL HEAD DRAWING PRESS

YzF27 Series

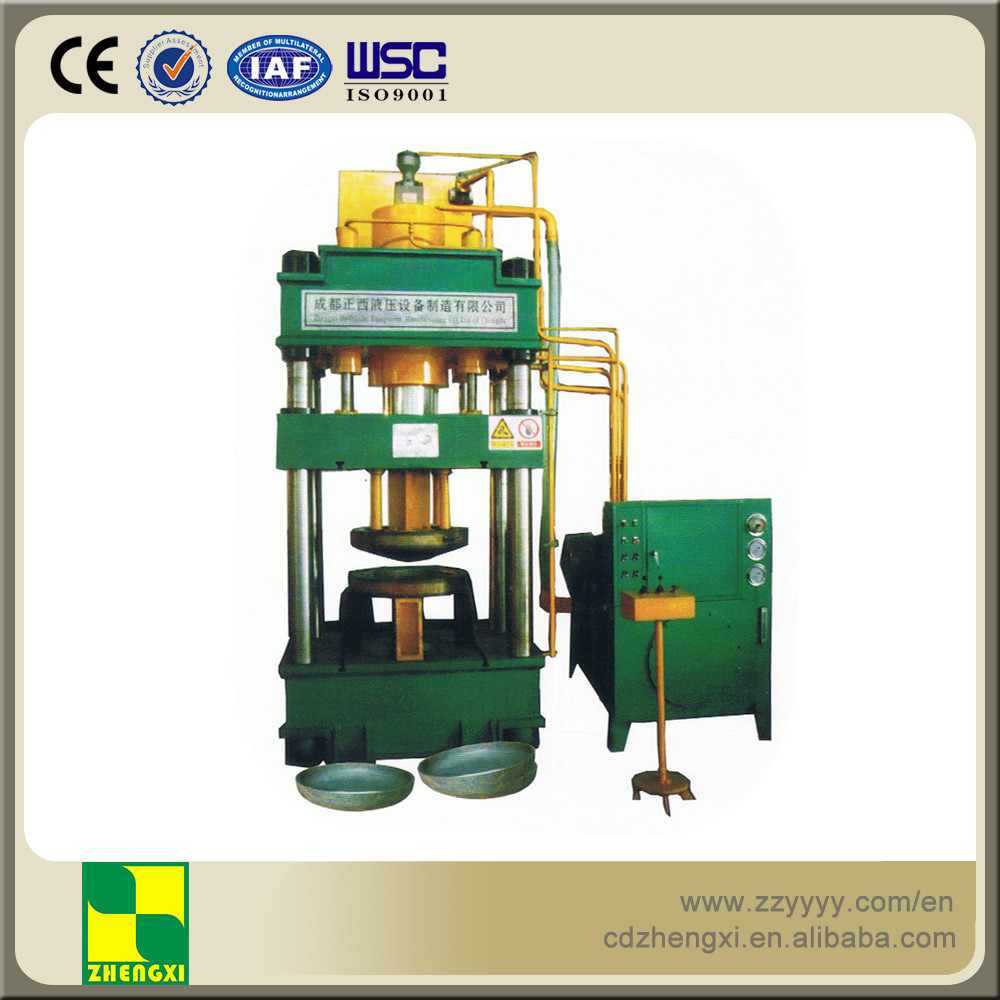

MACHINE APPEARANCE

PRESSING PROCESS DIAGRAM

DATA SHEET

Model	160t/20t*4	200t/30t*4	250t/40t*4	315t/45t*4	400t/50t*4	500t/63t*4	600t/80t*4	800t/100t*4	1000t/120t*4	1200t/150t*4	1500t/150t*4
Normal Force(KN)	1600	2000	2500	3150	4000	5000	6000	8000	1000	12000	15000
Liquid Pressure(Mpa)	25	25	25	25	25	25	25	25	25	25	25
Master Cylinder Stroke(mm)	700	700	800	850	1000	1200	1200	1200	1500	1600	1600
Edge Cylinder Stroke(mm)	550	550	600	650	700	800	800	800	1200	1200	1200
Working Table Size(mm)	900*800	1000*900	1200*1100	1300*1200	1500*1400	1800*1700	1800*1700	2000*1800	2500*2200	2500*2200	3000*2500
Edge Nomal Force(KN)	1200	1400	1600	1800	2000	2500	3200	4000	4800	6000	6000
Motor Power(KW)	11	15	18.5	22	30	37	37	45	60	60	74
Head Plate Size(mm)	400	450	500	700	800	1200	1200	1400	1600	1600	1800

ACCESSORIES BRAND

OPTIONAL ACCESSARIES
